A Direct-On-Line (DOL) starter is an electrical device used to start motors by directly connecting them to the full supply voltage. It is the simplest and most cost-effective method for motor control, commonly used for small and medium-sized motors. The DOL starter includes essential protection features like overload and short-circuit protection, ensuring safe operation. However, it delivers a high inrush current at startup, which can cause mechanical stress and electrical disturbances in larger motors, limiting its use to motors below certain power ratings
What is an DOL Starter?

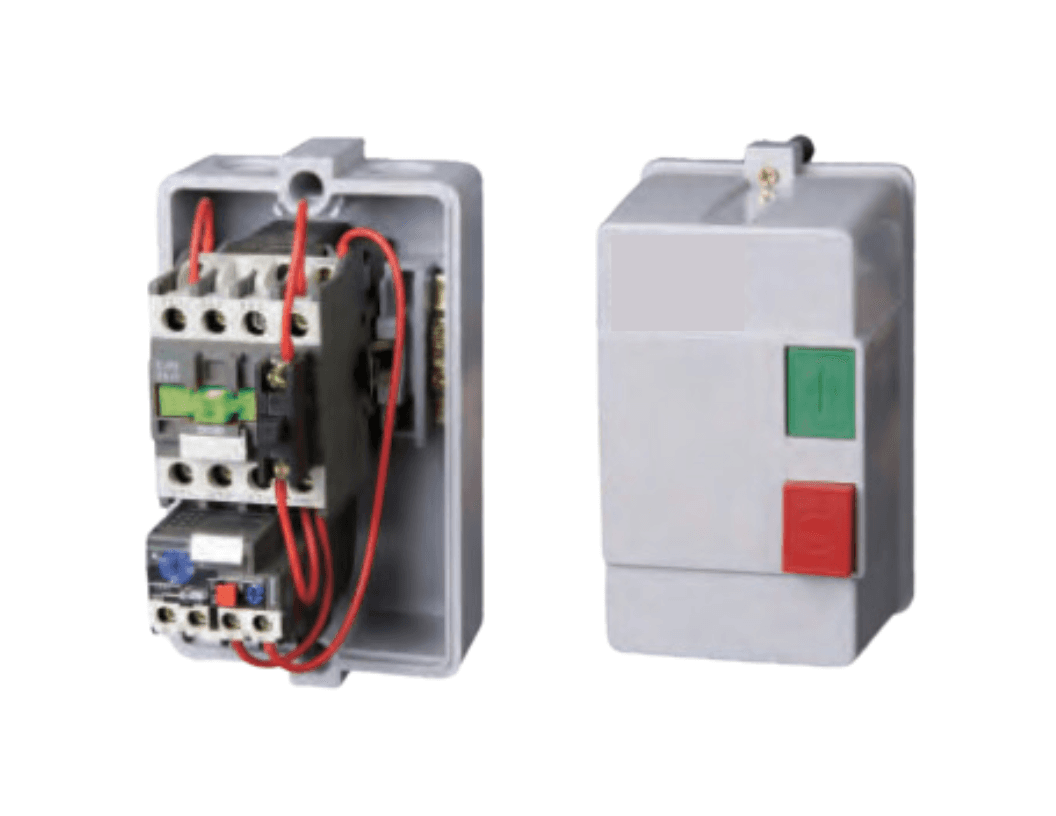

A Direct-On-Line (DOL) starter is one of the simplest and most commonly used methods for starting electric motors, particularly induction motors. It connects the motor terminals directly to the power supply, enabling the motor to receive full line voltage during startup. This straightforward design offers several benefits, such as simplicity, ease of installation, and cost-effectiveness.

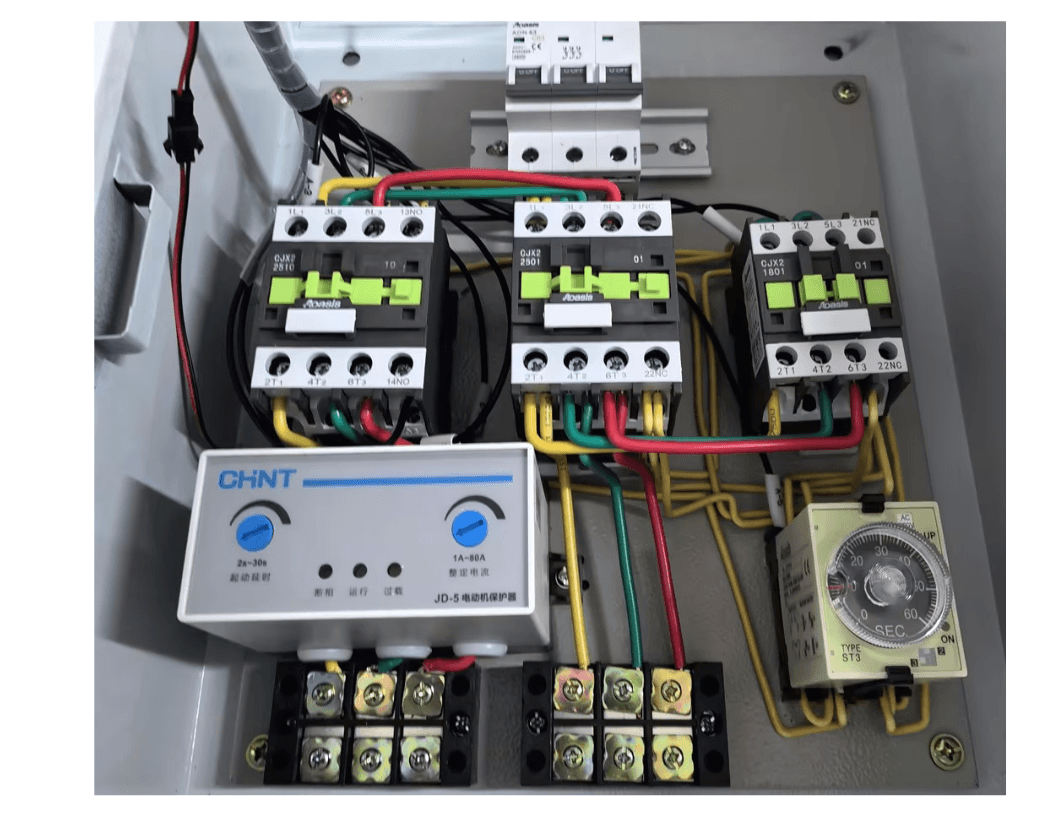

Key Components of a DOL Starter:
Contactor: This is an electromechanical switch used to connect and disconnect the motor from the power supply. It is operated by a control circuit and is crucial for remote or automatic motor control.
Overload Relay: This protects the motor from damage due to prolonged overcurrent or overload situations by disconnecting the motor if the current exceeds a predetermined threshold.
Fuses or Circuit Breakers: These provide protection against short circuits, ensuring the motor and the starter are safeguarded from excessive currents.
Start/Stop Push Buttons: These buttons control the contactor to either start or stop the motor. The buttons are often mounted on the starter panel for easy access.
Working Principle:
When the motor is started via a DOL starter, the full line voltage is applied directly to the motor windings. This causes a high inrush current, typically 6 to 8 times the motor's full load current, which can lead to mechanical stress on the motor's components and potential electrical disturbances. However, once the motor reaches its rated speed, the current drops to a normal level. The contactor remains closed, allowing continuous operation until the motor is stopped manually or automatically.
Advantages of DOL Starter
Cost-effective: Due to its simple design and fewer components, a DOL starter is inexpensive and widely used.
Simple operation: It is easy to install, use, and maintain, making it ideal for small motors.
High starting torque: Since the motor receives full voltage, it produces maximum starting torque, making it suitable for applications where immediate torque is necessary.
Conclusion
Electromagnetic vibrators are an essential component in many bulk handling systems. They offer a precise and controllable way to move materials that are stuck or compacted, allowing for more efficient operation of the system. With their reliability, effectiveness at moving a wide range of materials, and precise control over the vibration frequency and amplitude, electromagnetic vibrators are a popular choice for use in a variety of industrial applications.
