The E500B is suitable for a wide range of healthcare environments:

  • Hospitals – Emergency rooms, general wards, and intensive care units

  • Clinics – Outpatient cardiac diagnostics and wellness screenings

  • Ambulatory Services – Mobile health units and paramedics

  • Specialized Care – Pediatric, cardiology, and internal medicine departments

  • Telehealth Support – Data export and connectivity features support remote diagnostics

FEATURES

  • 12-lead simultaneous ECG monitoring for accurate and comprehensive cardiac assessments

  • 12-inch high-definition LCD touchscreen (1024 × 768 resolution) for clear waveform display and user-friendly operation

  • Supports data output in XML, PDF, and DICOM formats for seamless integration with hospital systems

  • One-touch workflow for efficient and intuitive operation

  • Built-in thermal printer with 12-channel output using Z-fold thermal paper (210 mm × 295 mm)

  • Connectivity options include USB, wired LAN (RJ45), and wireless interfaces

  • Barcode reader integration for streamlined patient identification and data entry

  • Pacemaker pulse detection with 8kHz/channel sampling rate

  • Rechargeable lithium battery (3300mAh) with over 4 hours of runtime

  • ≤7 hours charging time to full capacity

  • Suitable for both adult and pediatric patients

  • Complies with AHA and IEC standards

  • Defibrillation-proof (up to 5000V, 360J) with fast recovery time

  • Low noise level (≤30μV p-p) for enhanced signal accuracy

  • Multiple scan speeds: 5, 10, 12.5, 25, and 50 mm/s

  • Adjustable gain settings: 2.0, 2.5, 5, 10, and 20 mm/mV

  • Built-in filters: AC (50/60Hz), lowpass (40Hz–300Hz), and baseline drift removal

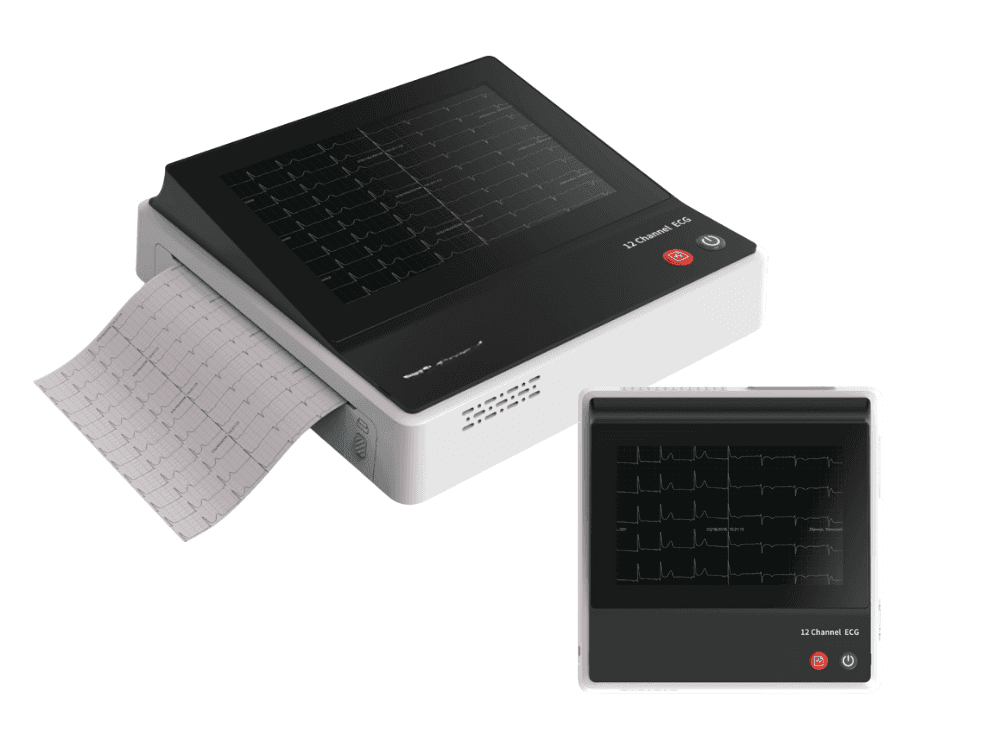

Electrocardiogram (ECG) Device

Electrocardiogram (ECG) Device

In modern healthcare, timely and accurate diagnosis can be lifesaving. Electrocardiograms (ECGs) play a vital role in evaluating cardiac health across a wide range of clinical environments. APS Technology’s E500B Electrocardiogram (ECG) Device is a cutting-edge solution designed to deliver precise, real-time cardiac monitoring for both adult and pediatric patients. With advanced features like a large 12” touchscreen, multi-format data output, and wireless integration, the E500B is built for clinical efficiency and diagnostic confidence.

What is an Electrocardiogram (ECG) Device?

An electrocardiogram (ECG) device is a medical instrument used to measure and record the electrical activity of the heart. By attaching electrodes to the patient’s body, it captures real-time waveforms that help clinicians identify abnormal heart rhythms, ischemia, and other cardiovascular issues. The E500B ECG Device provides 12-lead simultaneous monitoring for comprehensive assessment, ensuring early detection and accurate diagnosis.

Advantages of ECG

  • Efficiency in Clinical Workflow: The one-touch operation reduces setup time and enables faster diagnostics in busy clinical settings.

  • Improved Diagnostic Accuracy: High signal resolution, robust filters, and real-time 12-lead measurement ensure reliable results.

  • Seamless System Integration: With support for standard data formats (XML, PDF, DICOM), it integrates easily with EMR and hospital systems.

  • Enhanced Portability: Lightweight design and extended battery life make it ideal for mobile diagnostics or transport units.

  • Versatile Use: Built to accommodate both adult and pediatric patients with adjustable settings and high sensitivity.

  • Future-Proof Connectivity: Wired and wireless interfaces allow for flexible upgrades and integration into evolving IT infrastructures.

SPECIFICATIONS

ECG & Signal Processing

  • Modes: Automatic, Manual, Rhythm

  • Leads: 12 simultaneous

  • Scan Speeds: 5 / 10 / 12.5 / 25 / 50 mm/s

  • Gain Settings: 2.0 / 2.5 / 5 / 10 / 20 mm/mV

  • Frequency Response: 0.05Hz – 300Hz

  • Filters: AC (50/60Hz), lowpass (40Hz–300Hz), baseline

  • Pacemaker Detection: 8kHz/channel

  • Defibrillation Proof: 5000V, 360J

  • Noise Level: ≤30μV (p-p)

Measurement Parameters

  • Heart Rate (bpm)

  • PR Interval, QRS Duration, QT/QTc

  • P/QRS/T Axis

  • Signal Reproducibility: ±5%

  • Pacing Pulse Width: 0.1–2 ms; Amplitude: ±2 mV to ±250 mV

Hardware & Interface

  • Screen: 12” LCD touchscreen (1024 × 768 resolution)

  • Device Size: 400 × 350 × 120 mm

  • USB Ports: 2

  • Network: RJ45 LAN + wireless

  • Patient Connector: DB15

  • Printer: Built-in thermal recorder

  • Paper Size: 210 mm × 295 mm

  • Paper Speeds: 12.5 / 25 / 50 mm/s

  • Vertical Res: ≥8 pts/mm; Horizontal Res: 40 dots/mm

Power Supply

  • Input: 100–240V AC, 50/60Hz

  • Battery: 3300mAh lithium

  • Runtime: >4 hours

  • Charging Time: ≤7 hours (full charge)

Environmental Tolerance

  • Operating Temp: 5–40°C

  • Storage Temp: -20–60°C

  • Humidity: 15–95% RH (operation); 10–95% RH (storage)

  • Atmospheric Pressure: 70–106 kPa (operating); 57.3–106 kPa (storage)

FEATURES

  • 12-lead simultaneous ECG monitoring for accurate and comprehensive cardiac assessments

  • 12-inch high-definition LCD touchscreen (1024 × 768 resolution) for clear waveform display and user-friendly operation

  • Supports data output in XML, PDF, and DICOM formats for seamless integration with hospital systems

  • One-touch workflow for efficient and intuitive operation

  • Built-in thermal printer with 12-channel output using Z-fold thermal paper (210 mm × 295 mm)

  • Connectivity options include USB, wired LAN (RJ45), and wireless interfaces

  • Barcode reader integration for streamlined patient identification and data entry

  • Pacemaker pulse detection with 8kHz/channel sampling rate

  • Rechargeable lithium battery (3300mAh) with over 4 hours of runtime

  • ≤7 hours charging time to full capacity

  • Suitable for both adult and pediatric patients

  • Complies with AHA and IEC standards

  • Defibrillation-proof (up to 5000V, 360J) with fast recovery time

  • Low noise level (≤30μV p-p) for enhanced signal accuracy

  • Multiple scan speeds: 5, 10, 12.5, 25, and 50 mm/s

  • Adjustable gain settings: 2.0, 2.5, 5, 10, and 20 mm/mV

  • Built-in filters: AC (50/60Hz), lowpass (40Hz–300Hz), and baseline drift removal

APPLICATIONS

The E500B is suitable for a wide range of healthcare environments:

  • Hospitals – Emergency rooms, general wards, and intensive care units

  • Clinics – Outpatient cardiac diagnostics and wellness screenings

  • Ambulatory Services – Mobile health units and paramedics

  • Specialized Care – Pediatric, cardiology, and internal medicine departments

  • Telehealth Support – Data export and connectivity features support remote diagnostics

Conclusion

The APS E500B ECG Device is a high-performance solution designed to meet the demands of modern cardiac diagnostics. With intelligent design, smart connectivity, and advanced measurement technology, it empowers healthcare providers to deliver fast, accurate care in any setting. Whether in a hospital, clinic, or mobile unit, the E500B is your trusted partner in cardiac monitoring.
