APPLICATIONS

Pumps: Commonly used in water and sewage pumping systems to reduce the mechanical stress on the motor and piping during startup.

Fans and Blowers: Ideal for ventilation and cooling systems, where a gradual increase in motor speed prevents sudden airflow surges and reduces mechanical wear.

Compressors: Utilized in air compressors to limit the initial current draw and minimize mechanical shock during startup.

Conveyors: Employed in conveyor systems to ensure smooth starting and avoid damage to the belt or mechanical components due to sudden torque.

Crushers: Used in industrial crushers where high inertia loads are present, allowing the motor to start smoothly without high torque demand.

Mixers and Agitators: Suitable for machines that require a gradual buildup of speed, ensuring efficient mixing processes without sudden jolts.

Machine Tools: Star delta starters are applied in large industrial tools to prevent excessive current draw, ensuring safe and efficient operation.

Blowers and Exhausters: Effective in starting blowers or exhaust systems smoothly, particularly in large HVAC systems.

FEATURES

  • Timer: Automatic changeover from star to delta.

  • Temperature Range: Operates between -5°C and +40°C.

  • Humidity Tolerance: Supports up to 50% humidity at +40°C, 90% at 20°C.

  • Pollution and Installation Grade: Rated for Pollution Grade 3, Installation Category III.

  • Mounting: Inclination should not exceed ±5° from the vertical.

  • Shock Resistance: Suitable for areas without significant vibration.

Star Delta Starters

Star Delta Starters

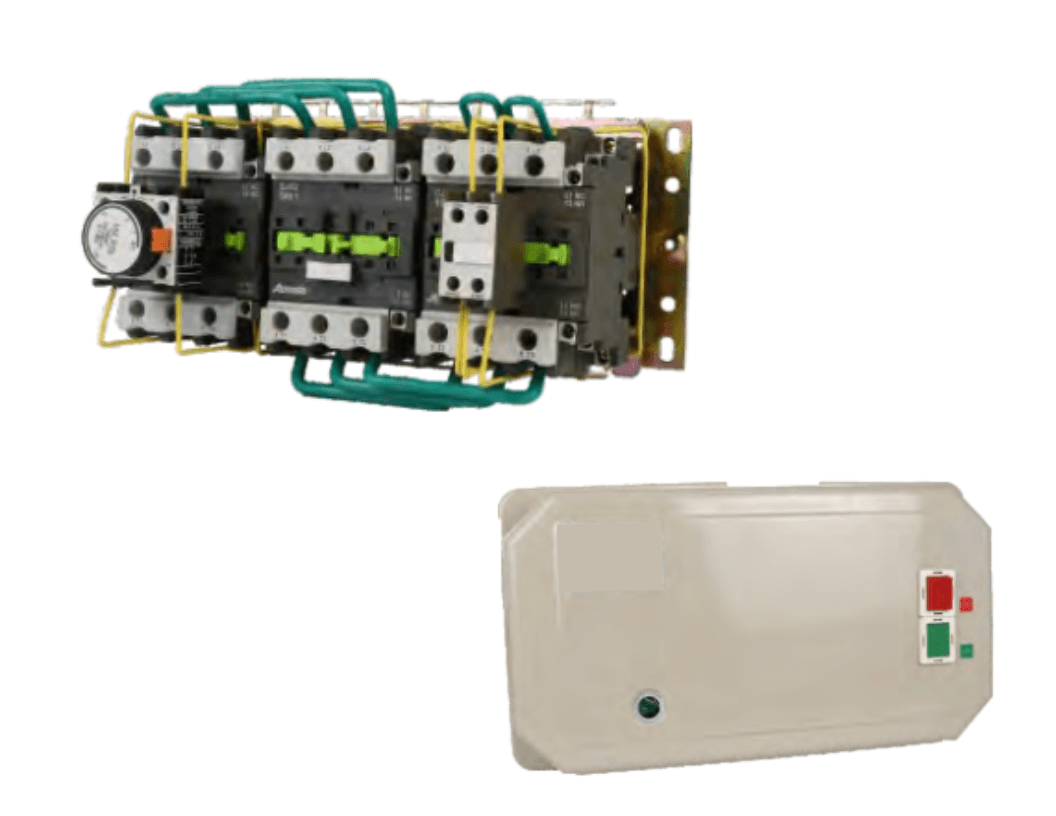

A Star Delta Starter is an electromechanical device used to reduce the initial surge of current during the startup of three-phase induction motors. It achieves this by initially connecting the motor in a star configuration, then switching to a delta configuration once the motor reaches a set speed, providing smoother acceleration and minimizing electrical stress.

What is an Star Delta Starter?

A Star Delta Starter is a widely used method for starting three-phase induction motors by reducing the inrush current that occurs during startup. This starter works by initially connecting the motor windings in a star configuration, which lowers the voltage applied to each winding to 1/√3 (about 58% of the line voltage). This results in a reduced starting torque and lower starting current, which helps prevent electrical and mechanical stress on both the motor and the electrical network.Once the motor reaches approximately 80-90% of its rated speed, the starter automatically switches the windings to a delta configuration, applying the full line voltage to the motor and allowing it to operate at full power and torque. This two-step process ensures smoother acceleration, reduces the risk of motor overheating, and helps avoid large voltage drops in the power supply, making it ideal for applications with high-power motors that require a controlled start.Star Delta Starters are commonly used in industrial settings for motors driving pumps, fans, compressors, and conveyors, where minimizing electrical and mechanical stresses during startup is critical.

Advantages of Star Delta Starter

  • Reduced Starting Current: The star configuration reduces the voltage applied to the motor windings, resulting in a lower starting current (approximately one-third of the full load current), minimizing electrical stress.

  • Lower Starting Torque: The reduced voltage also decreases the starting torque, which is beneficial for applications where high initial torque could damage the system.

  • Cost-Effective: Star delta starters are relatively simple in design and are more affordable compared to other motor starters like soft starters or variable frequency drives (VFDs).

  • Energy Efficient: By reducing the initial power demand, star delta starters help in reducing energy consumption during motor startup.

  • Less Mechanical Stress: The smoother transition from star to delta reduces mechanical wear and tear on motors and connected equipment, extending their lifespan.

  • Prevents Voltage Drops: The lower starting current minimizes sudden voltage drops in the electrical network, preventing disturbances to other equipment on the same supply.

  • Widely Used for Large Motors: Ideal for high-power, three-phase induction motors in industrial applications, especially those that don't require high starting torque, such as pumps, fans, and compressors.


SPECIFICATIONS

FEATURES

  • Timer: Automatic changeover from star to delta.

  • Temperature Range: Operates between -5°C and +40°C.

  • Humidity Tolerance: Supports up to 50% humidity at +40°C, 90% at 20°C.

  • Pollution and Installation Grade: Rated for Pollution Grade 3, Installation Category III.

  • Mounting: Inclination should not exceed ±5° from the vertical.

  • Shock Resistance: Suitable for areas without significant vibration.

APPLICATIONS

Pumps: Commonly used in water and sewage pumping systems to reduce the mechanical stress on the motor and piping during startup.

Fans and Blowers: Ideal for ventilation and cooling systems, where a gradual increase in motor speed prevents sudden airflow surges and reduces mechanical wear.

Compressors: Utilized in air compressors to limit the initial current draw and minimize mechanical shock during startup.

Conveyors: Employed in conveyor systems to ensure smooth starting and avoid damage to the belt or mechanical components due to sudden torque.

Crushers: Used in industrial crushers where high inertia loads are present, allowing the motor to start smoothly without high torque demand.

Mixers and Agitators: Suitable for machines that require a gradual buildup of speed, ensuring efficient mixing processes without sudden jolts.

Machine Tools: Star delta starters are applied in large industrial tools to prevent excessive current draw, ensuring safe and efficient operation.

Blowers and Exhausters: Effective in starting blowers or exhaust systems smoothly, particularly in large HVAC systems.

Conclusion

In conclusion, the Star Delta Starter is a reliable and cost-effective solution for starting high-power, three-phase induction motors. By reducing the initial inrush current and starting torque, it minimizes electrical and mechanical stresses, enhancing the longevity of motors and connected equipment. Its simplicity, energy efficiency, and ability to prevent voltage drops make it a popular choice in industrial applications such as pumps, fans, compressors, and conveyors. While not suited for applications requiring high starting torque, the Star Delta Starter remains a highly effective and widely used method for smooth motor startup in various industries.
