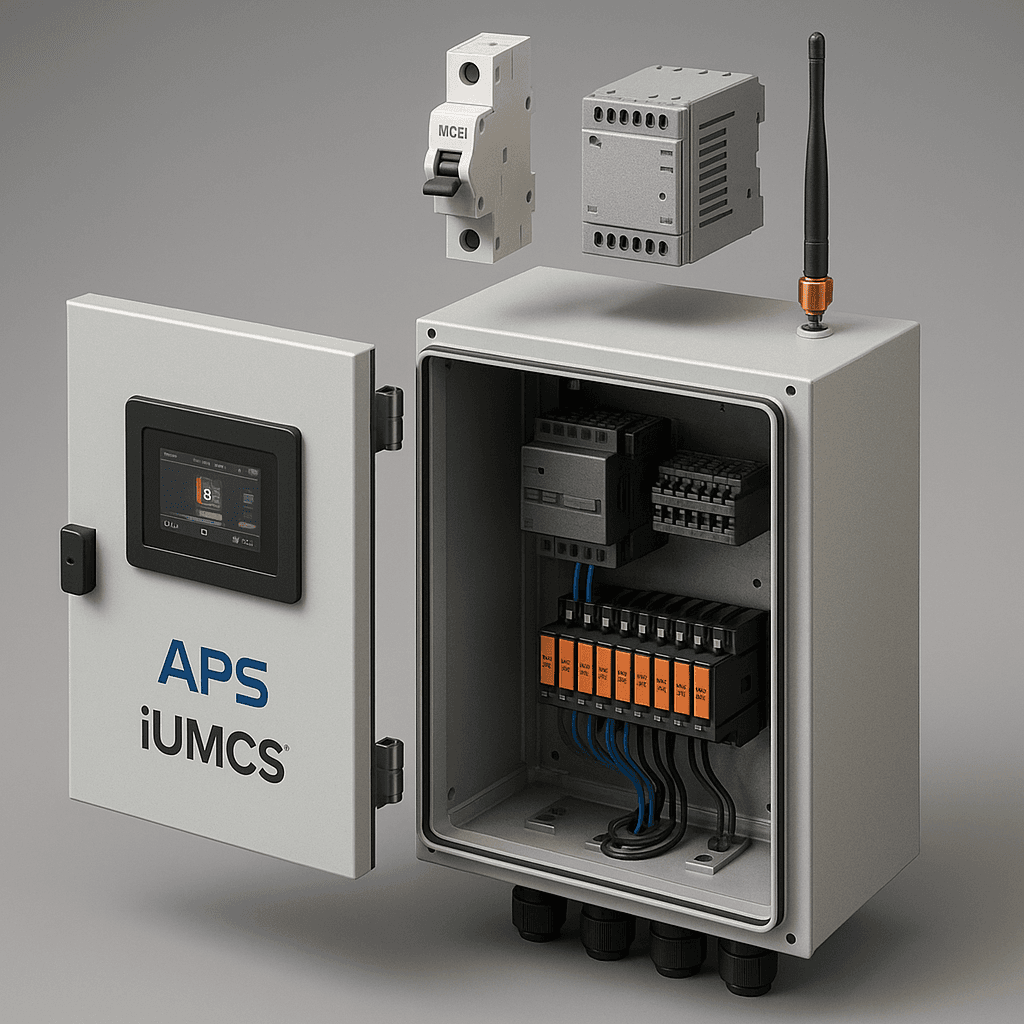

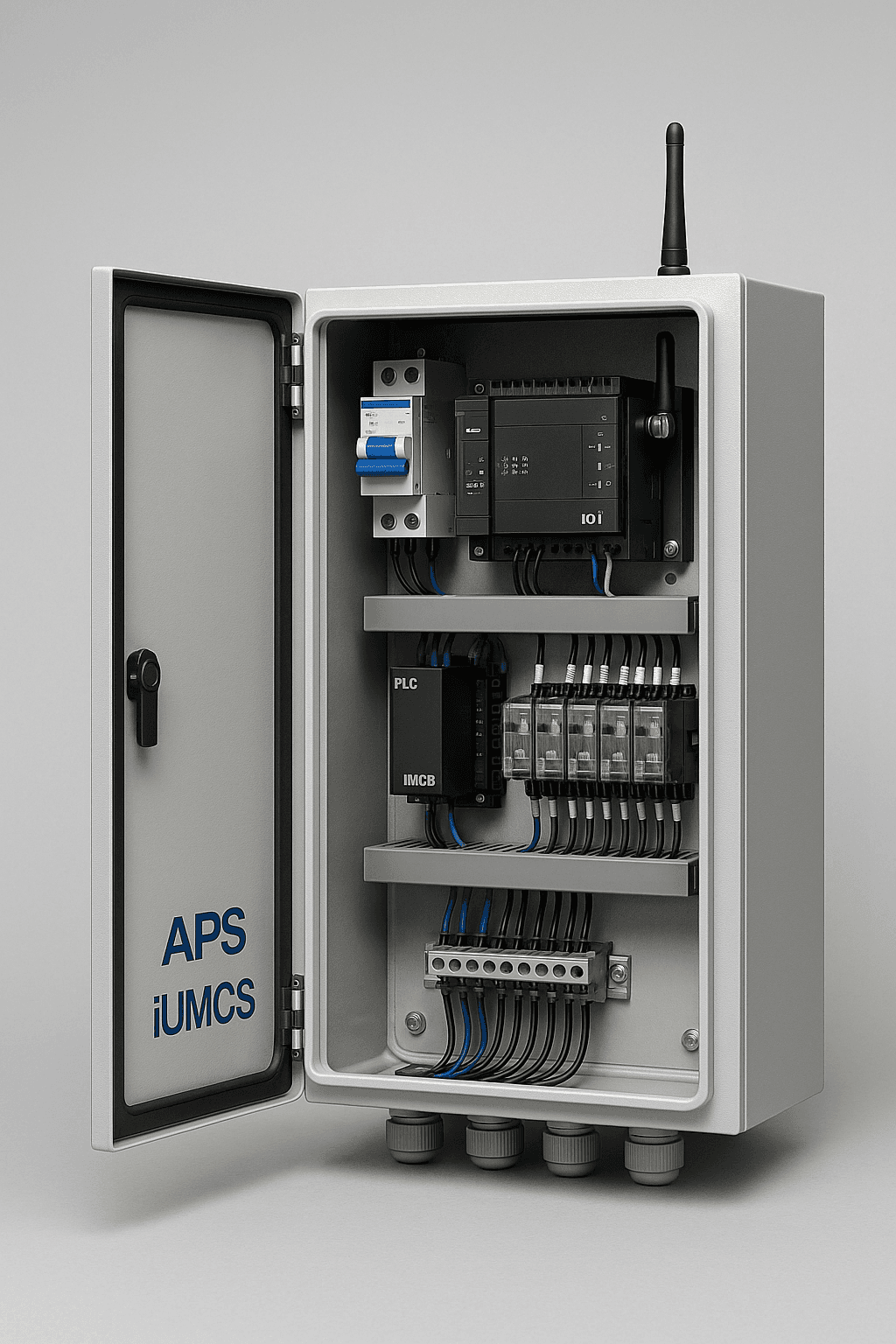

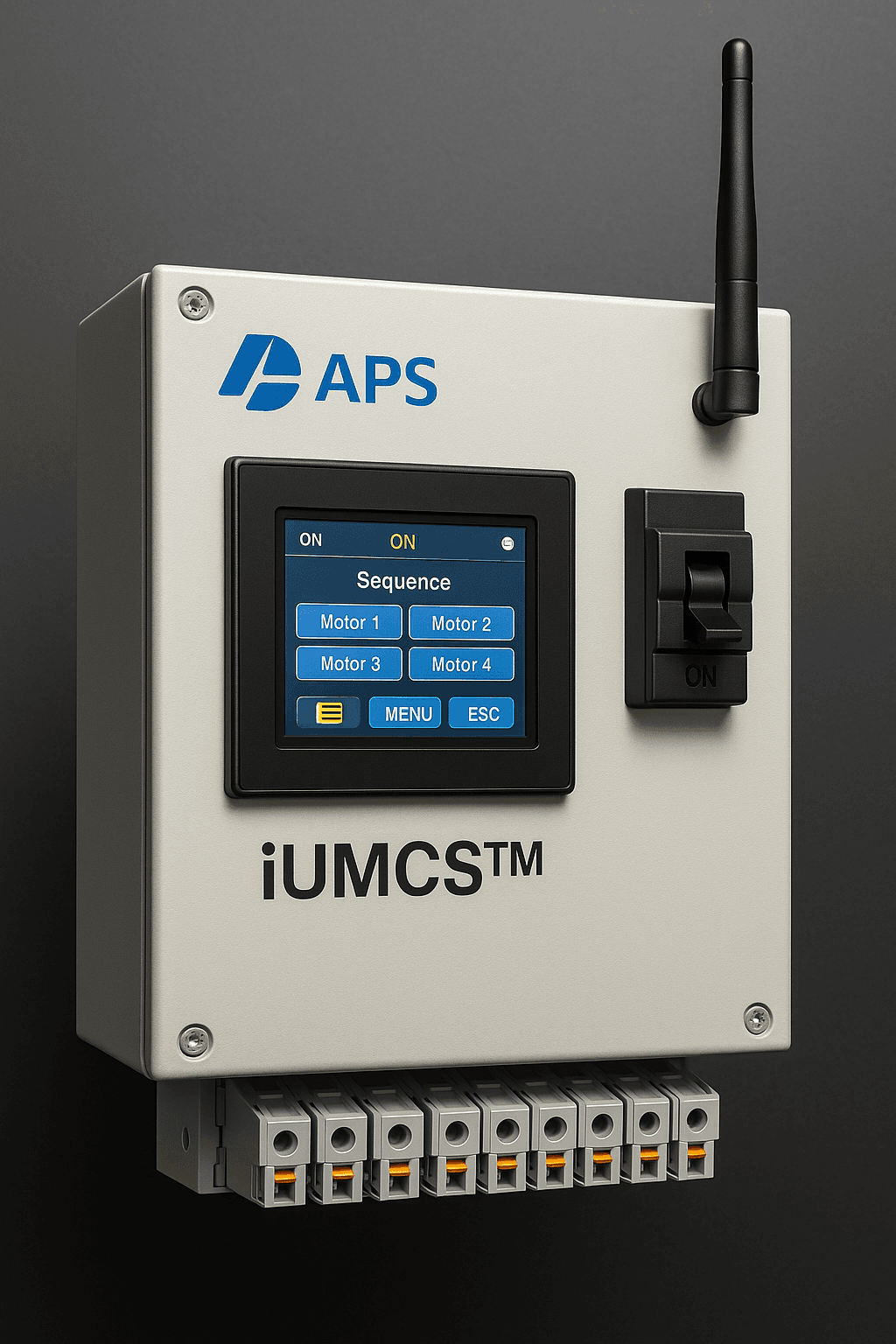

The APS iUMCS™ (Intelligent Universal Motor Control System) is a next-generation, all-in-one motor management platform engineered for industrial environments that demand reliability, safety, and seamless automation. By integrating MCB protection, PLC logic, touchscreen HMI, industrial IoT connectivity, and modular multi-motor outputs into a single unified system, the iUMCS™ eliminates the complexity of traditional motor control panels. Designed for operations running 2 to 20 motors—plus optional ATEX-certified enclosures—the iUMCS™ delivers smarter control, stronger protection, and real-time visibility for any industrial workflow.
What is the APS iUMCS ?
The APS iUMCS™ (Intelligent Universal Motor Control System) is a fully integrated motor management platform designed to control, protect, and monitor multiple motors in industrial environments.
It combines:
- MCB-based electrical protection
- Industrial HMI touchscreen
- PLC logic controller
- Industrial IoT router
- Modular relay outputs (2 to 20 motors)
- Multiple enclosure options including ATEX-certified boxes into one unified system.
Specifications
Input Voltage: 230V / 415V AC
Protection: Industrial MCB (2–32A)
Controller: Delta DVP or APS PLC
Touchscreen: 4.3” / 7” / 10”
Motor Outputs: 2–20 relays
IoT Module: 4G/5G/Wi-Fi/Ethernet
Enclosure: IP55 / IP65 / ATEX
Operating Temp: –10°C to +55°C
Conclusion

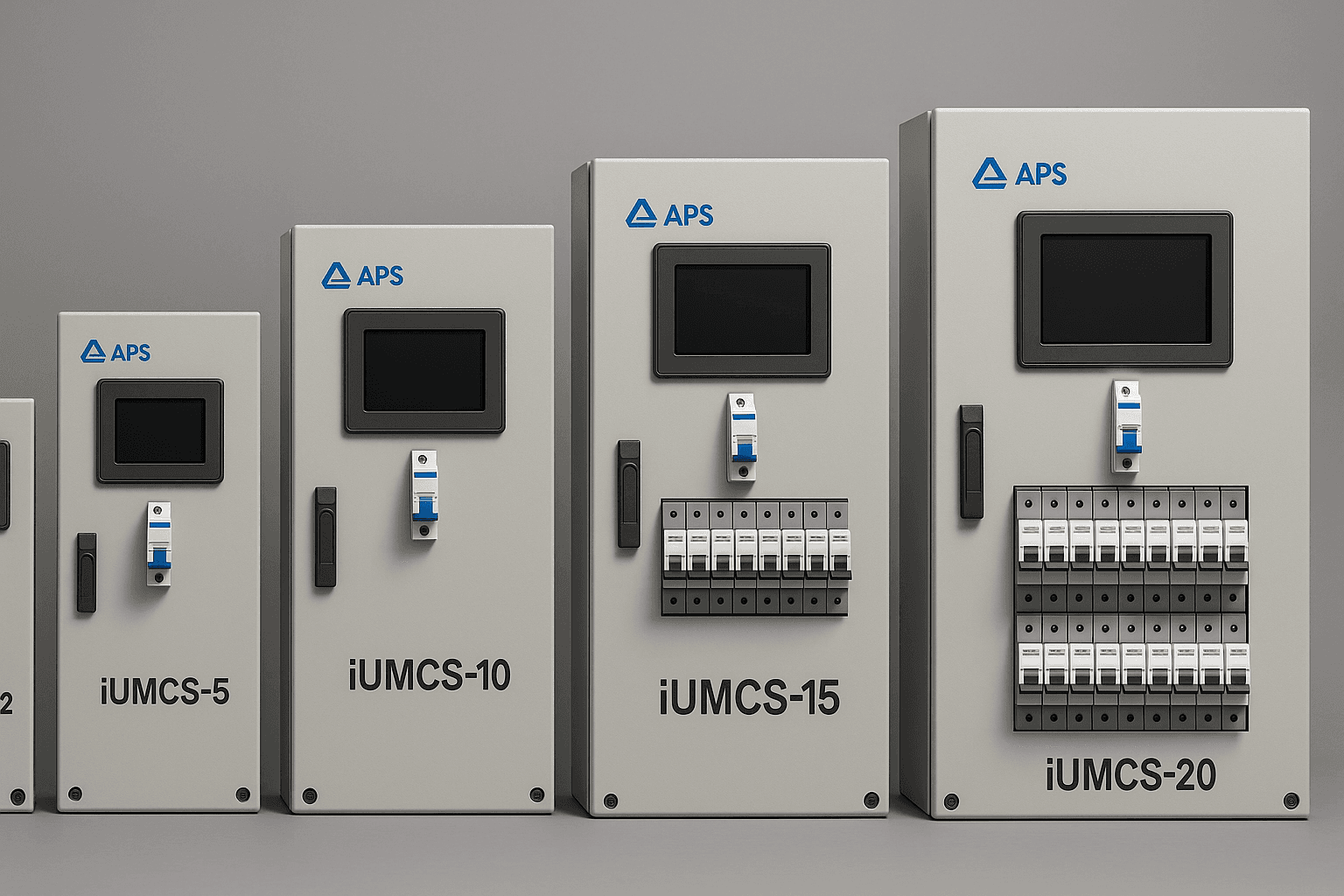

The APS iUMCS™ delivers a modern, unified, and scalable approach to multi-motor control. With configurable 2–20 motor options, integrated PLC/HMI/MCB architecture, robust APS engineering, and optional ATEX enclosures, it is ideal for industries demanding safety, reliability, and simplified automation.
APS iUMCS™ — Control. Protect. Connect.
