APPLICATIONS

Medical oxygen concentrators are ideal for:

  • Home oxygen therapy for chronic respiratory patients

  • Management of COPD, asthma, and other lung diseases

  • Post-surgical oxygen support

  • Oxygen supplementation in sleep apnea therapy (as prescribed)

  • Elderly care in home or assisted living environments

  • Hospital and clinical use

FEATURES

  • Adjustable Flow Rates: 0.5–10 L/min (model-dependent)

  • High Oxygen Purity: Up to 93% (±3%)

  • Low Noise Operation: Ranges from ≤38dB to <50dB

  • Power-Efficient: Models range from ≤300W to ≤880W

  • Safety Alerts: Power failure, low oxygen levels, and abnormal pressure detection

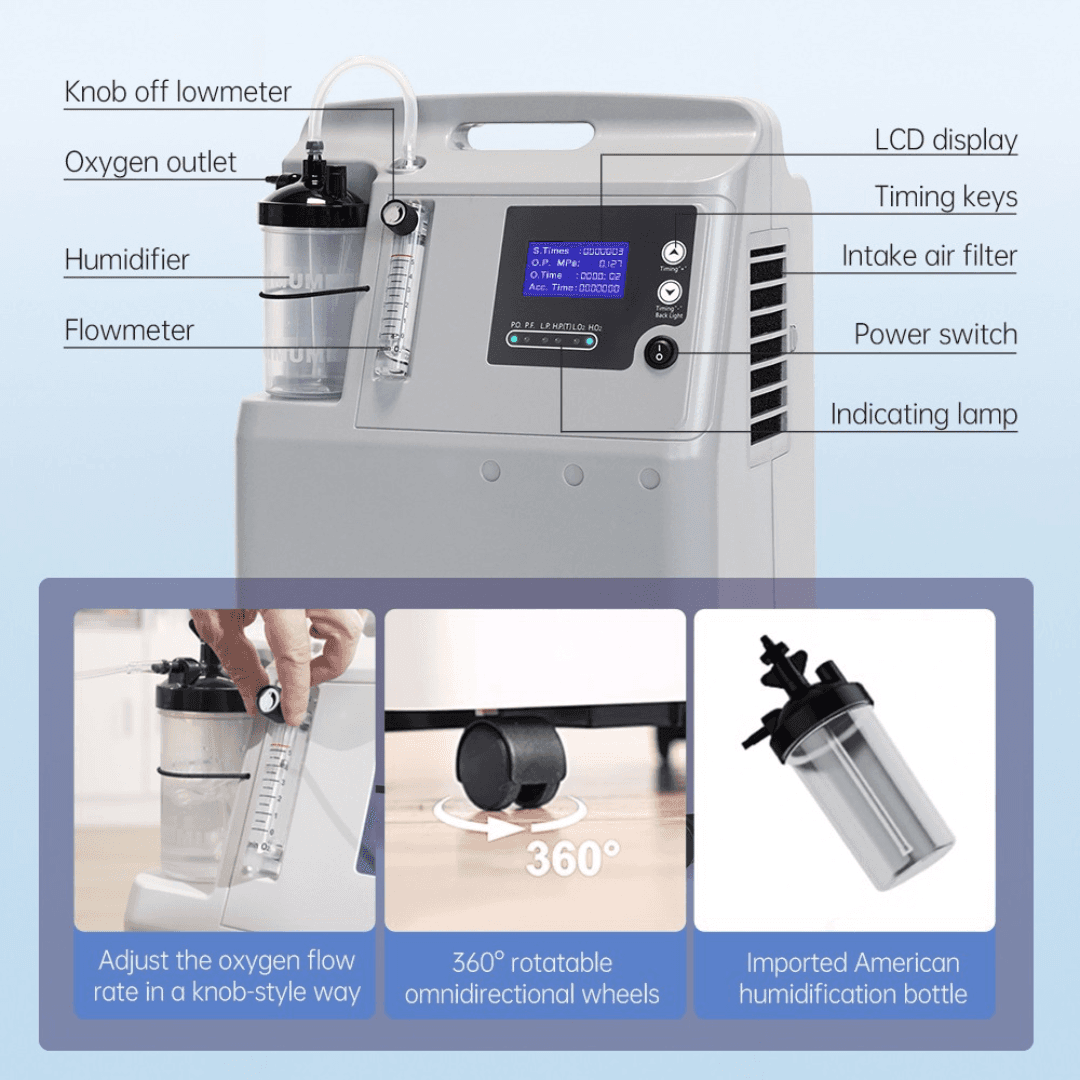

  • Ergonomic Design: Integrated humidifier connection and LCD control interface

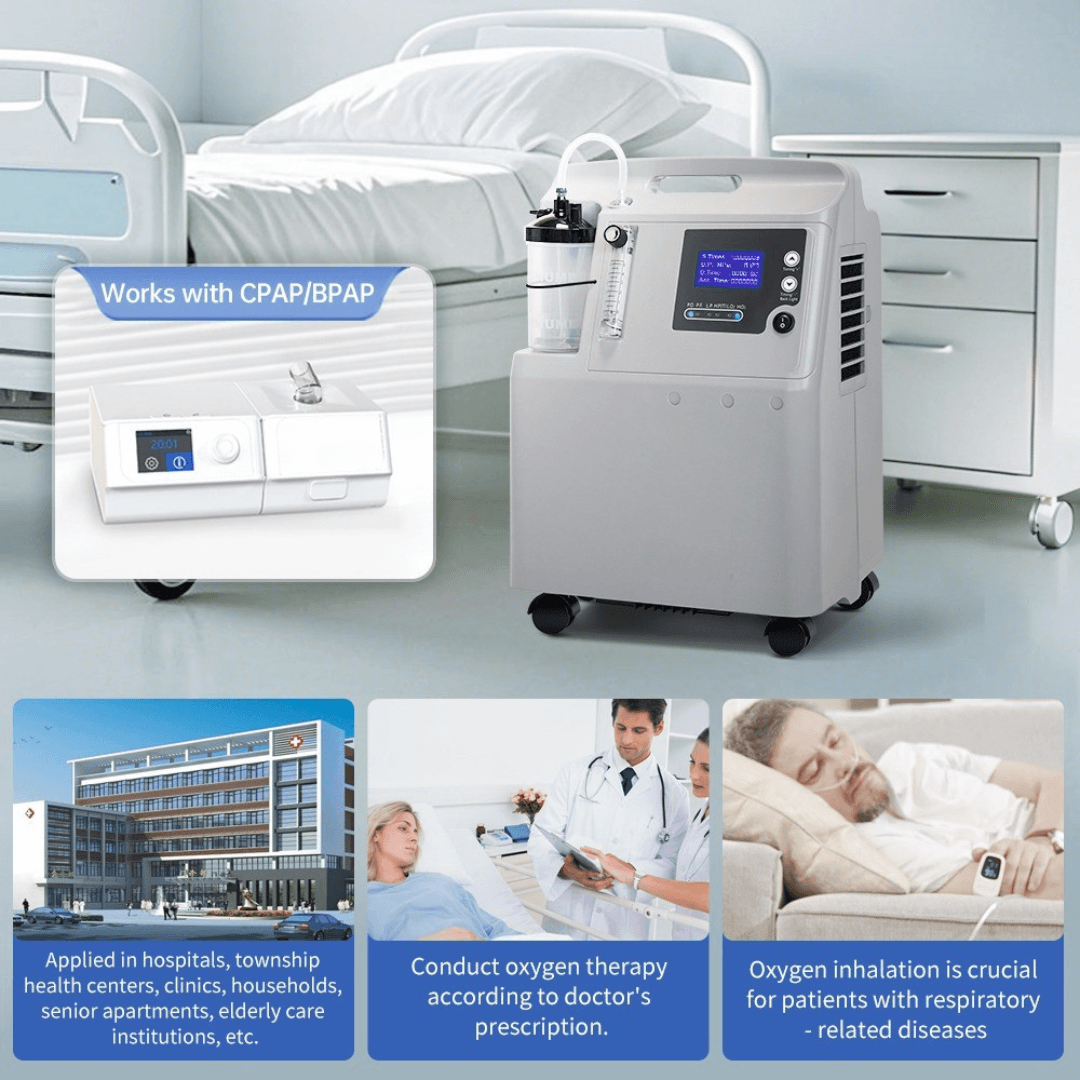

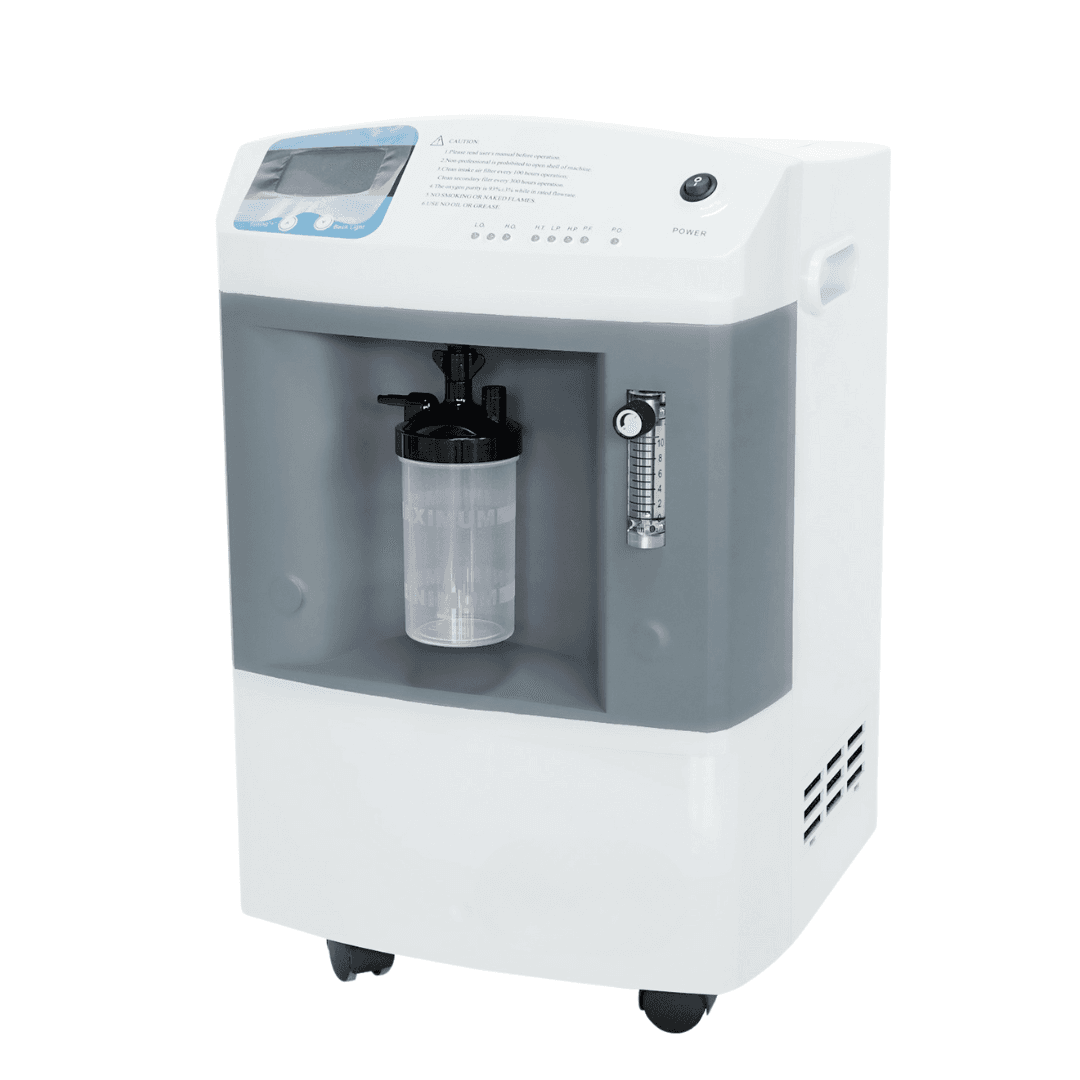

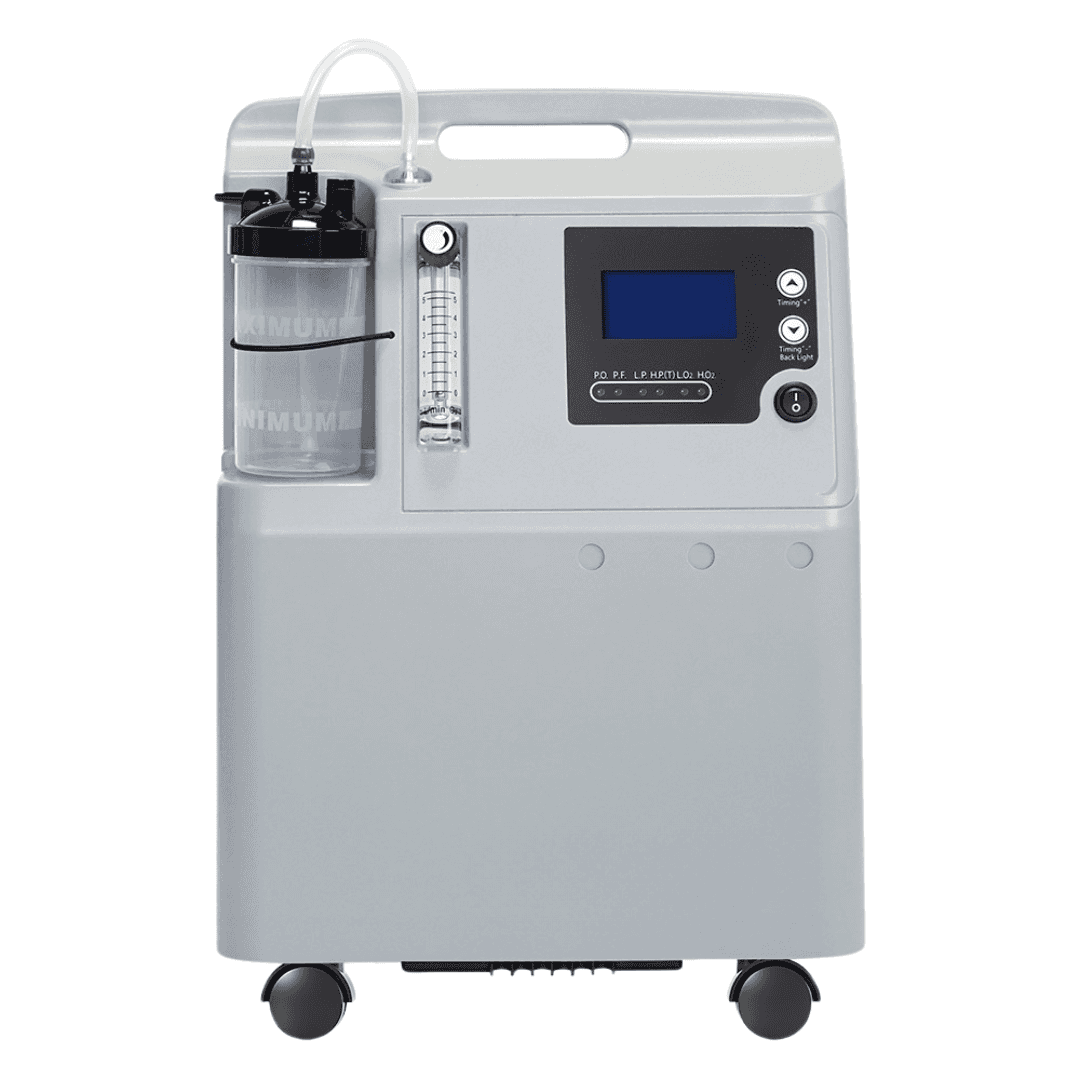

Medical Oxygen Concentrator

Medical Oxygen Concentrator

At APS Technology, we understand the critical importance of reliable oxygen therapy for patients with respiratory conditions. Our Medical Oxygen Concentrators are designed to deliver continuous, high-purity oxygen in both clinical and homecare environments. Engineered for performance, safety, and ease of use, these devices support individuals who require consistent oxygen supplementation due to chronic illnesses or post-operative recovery. Whether you're a healthcare provider or a caregiver, our concentrators offer a dependable, user-friendly solution that aligns with global health standards.

What is Medical Oxygen Concentrator?

Medical oxygen concentrators are essential healthcare devices that provide a continuous and reliable source of high-purity oxygen to patients requiring long-term respiratory support. These devices are designed to filter and concentrate oxygen from ambient air, delivering it to individuals in need of supplemental oxygen, either at home or in clinical settings.

Advantages of the Multi Monitoring System

  • Continuous High-Purity Oxygen: Delivers up to 93% (±3%) oxygen concentration.

  • Quiet Operation: Operates at a low noise level (≤38dB to <50dB) for patient comfort.

  • Energy Efficient: Consumes low power, making it suitable for continuous use.

  • User-Friendly Design: Features intuitive LCD displays and simple control panels.

  • Built-In Safety Systems: Alerts for low oxygen concentration, power failure, and pressure anomalies.

  • Low Maintenance: Designed for reliability with minimal upkeep.

SPECIFICATIONS

Model

Flow Rate

Oxygen Purity

Noise Level

Power Consumption

Dimensions (mm)

Built-in Alarms

JAY-5AW

0.5–5 L/min

93% (±3%)

≤40dB

≤350W

348×280×510

Power failure, low O₂, pressure alert

JAY-5BW

0.5–5 L/min

93% (±3%)

≤38dB

≤300W

360×300×600

Power failure, low O₂, pressure alert

JAY-5DW

0.5–5 L/min

93% (±3%)

≤40dB

≤350W

355×245×595

Power failure, low O₂, pressure alert

JAY-5HW

0.5–5 L/min

93% (±3%)

≤38dB

≤350W

379×283×589

Power failure, low O₂, pressure alert

JAY-10

0.5–10 L/min

93% (±3%)

<50dB

≤880W

365×375×600

Power failure, low O₂, pressure alert

JAY-10FW

0.5–10 L/min

93% (±3%)

≤46dB

≤710W

385×350×600

Power failure, low O₂, pressure alert

FEATURES

  • Adjustable Flow Rates: 0.5–10 L/min (model-dependent)

  • High Oxygen Purity: Up to 93% (±3%)

  • Low Noise Operation: Ranges from ≤38dB to <50dB

  • Power-Efficient: Models range from ≤300W to ≤880W

  • Safety Alerts: Power failure, low oxygen levels, and abnormal pressure detection

  • Ergonomic Design: Integrated humidifier connection and LCD control interface

APPLICATIONS

Medical oxygen concentrators are ideal for:

  • Home oxygen therapy for chronic respiratory patients

  • Management of COPD, asthma, and other lung diseases

  • Post-surgical oxygen support

  • Oxygen supplementation in sleep apnea therapy (as prescribed)

  • Elderly care in home or assisted living environments

  • Hospital and clinical use

Conclusion

APS Technology’s medical oxygen concentrators are built to meet the needs of modern healthcare, providing high-performance oxygen delivery with advanced safety mechanisms, minimal noise, and ease of use. From hospitals to home-based care, these units ensure dependable respiratory support, helping patients breathe easier every day.
